About Program Toyota Prius 2014 All Keys Lost with Xtool X100 PAD

 How to program a new key for a 2014 Toyota Prius push start proximity all keys lost with xtool x100 pad (pad2/pad3) via OBD. The same procedure can be applied to Prius from year 2010 to 2018.

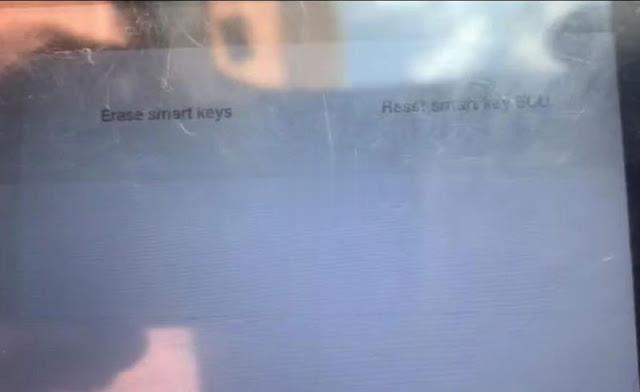

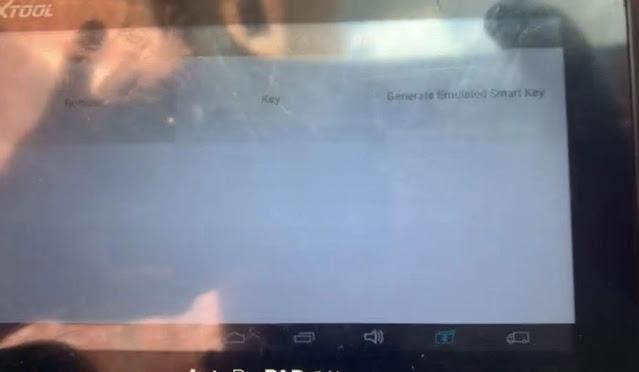

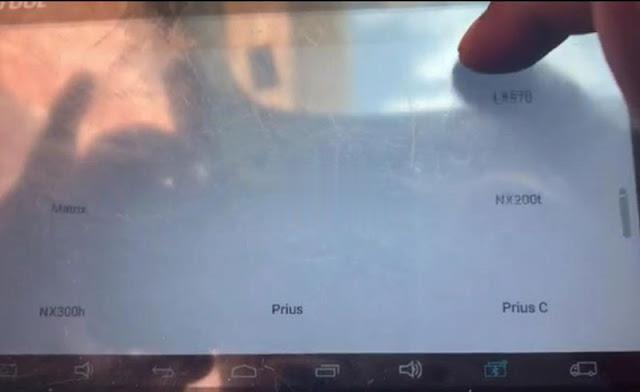

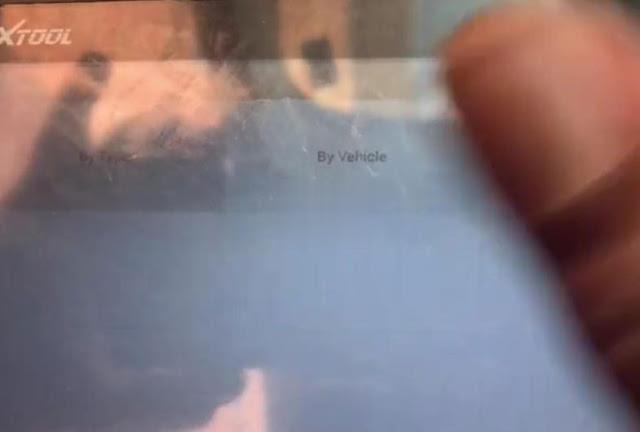

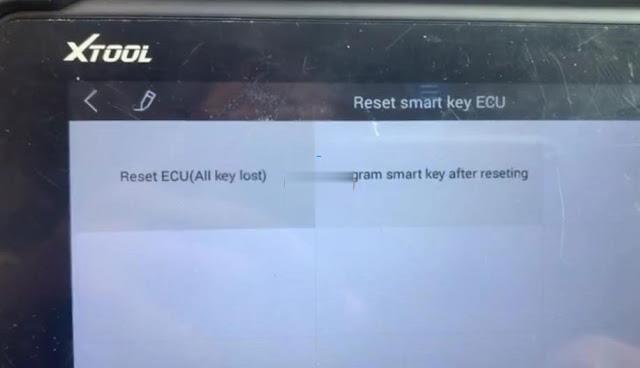

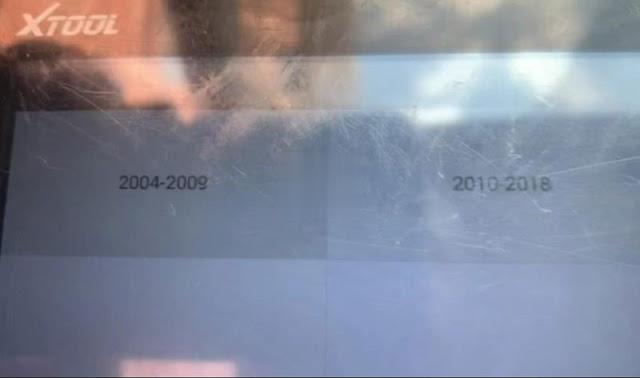

Select IMMO- Toyota- Key- By Vehicle- Prius- Proximity- 2010 to 2018- Reset Smart Key ecu (Smart Box)- Reste ECU (All keys lost)
xtool-x100-pad-toyota-prius-2014-akl-1 (2) xtool-x100-pad-toyota-prius-2014-akl-2 (2) xtool-x100-pad-toyota-prius-2014-akl-3 (2) xtool-x100-pad-toyota-prius-2014-akl-4 (2) xtool-x100-pad-toyota-prius-2014-akl-5 (2) xtool-x100-pad-toyota-prius-2014-akl-6 (2)

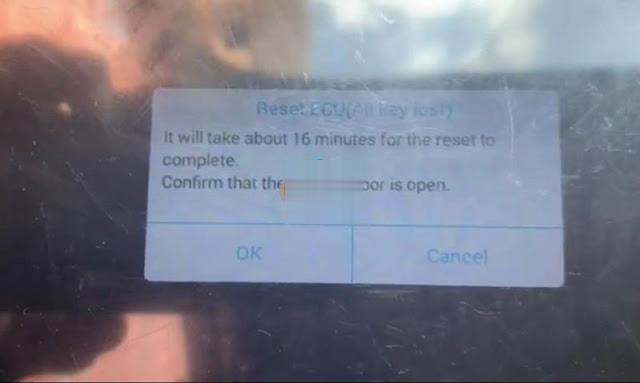

Reset smart box takes about 16 minutes.

xtool-x100-pad-toyota-prius-2014-akl-7 (2)

xtool-x100-pad-toyota-prius-2014-akl-8 (2)
Reset smart box success
xtool-x100-pad-toyota-prius-2014-akl-9 (2)

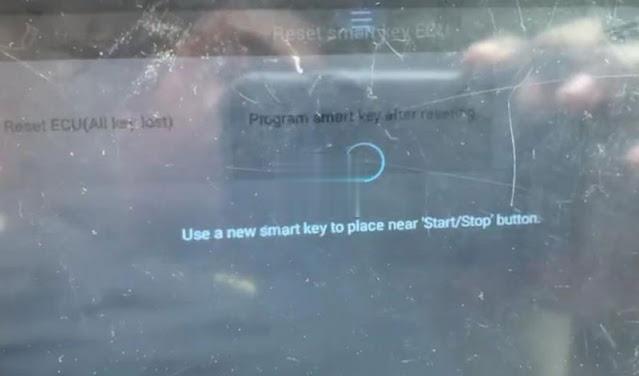

Select Program smart key after resetting

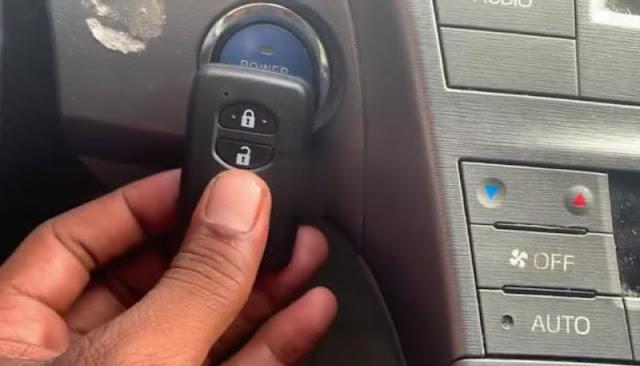

Put a new smart key to close the Start/Stop button
xtool-x100-pad-toyota-prius-2014-akl-10 (2)

xtool-x100-pad-toyota-prius-2014-akl-11 (2)

Program complete
xtool-x100-pad-toyota-prius-2014-akl-12 (2)

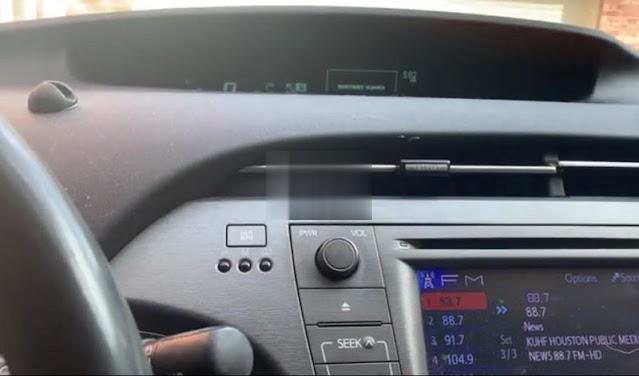

Test new key

xtool-x100-pad-toyota-prius-2014-akl-12 (2)

xtool-x100-pad-toyota-prius-2014-akl-13 (2)

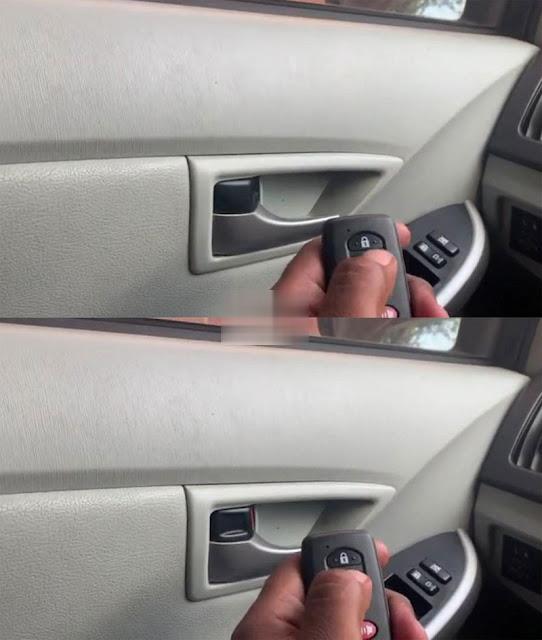

The new key can start the vehicle, remote control works as well.

Done.
